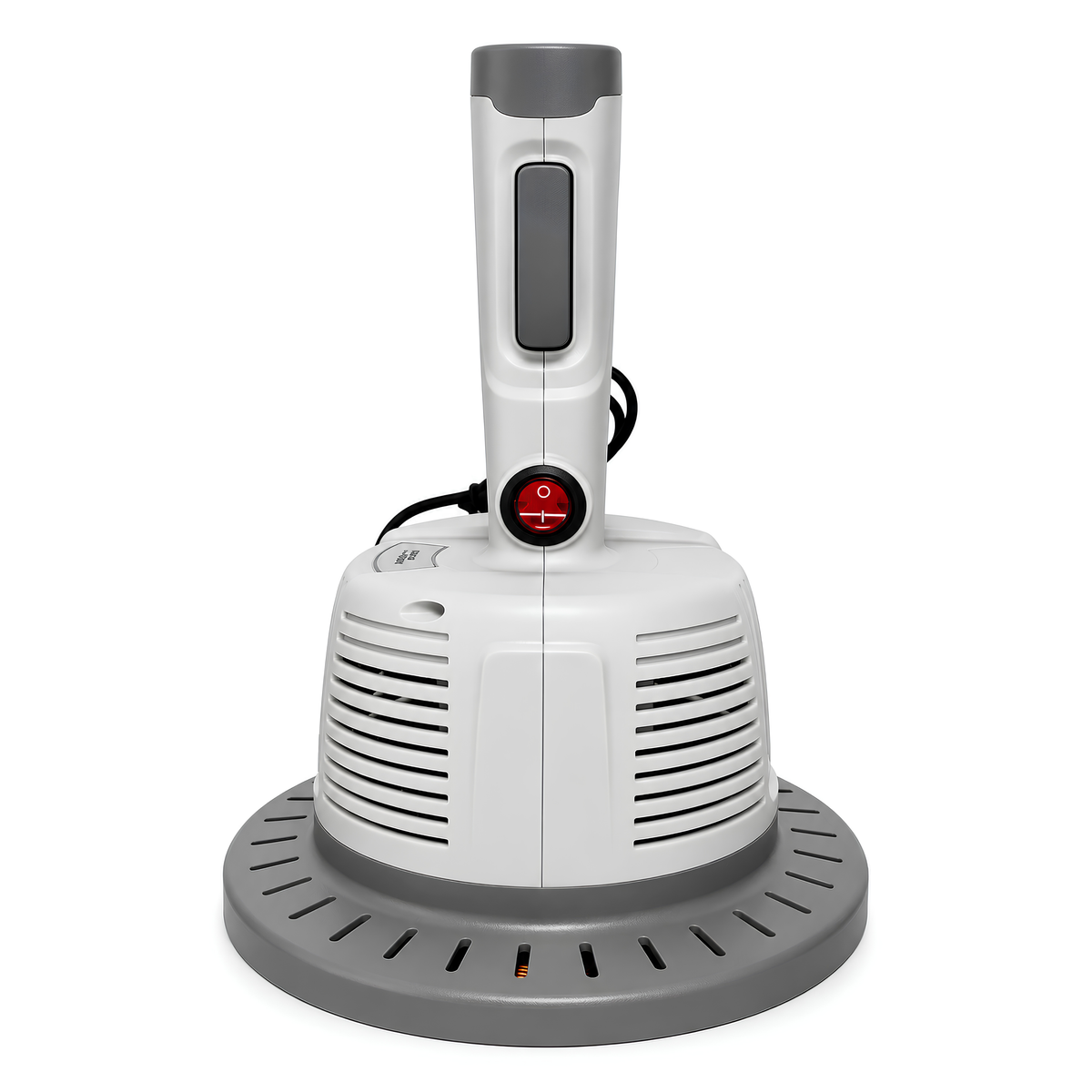

Handheld Heat Induction Sealing Machine - DGYF-400C

The DGYF-400C Handheld Heat Induction Sealing Machine offers a convenient and efficient solution for sealing compatible plastic and glass containers with aluminium foil induction liners. Featuring adjustable sealing times, a digital display and a handheld design, it creates secure, tamper-evident seals that help prevent leaks and protect product contents.

Description

Improve your packaging process with the DGYF-400C Handheld Heat Induction Sealing Machine. Designed for efficient and reliable sealing, this machine uses electromagnetic induction technology to bond compatible aluminium foil liners to container openings, creating a secure, tamper-evident seal.

Its compact, handheld design makes it ideal for small businesses, start-ups and production environments looking for a practical sealing solution without the need for large, automated equipment.

The machine features a digital display, adjustable sealing times and automatic memory functionality for convenient operation. With a sealing diameter range of 50–160mm and a production capacity of approximately 20–30 bottles per minute, it accommodates a variety of compatible packaging sizes.

Suitable for applications in the cosmetics, personal care, household and other non-flammable product industries, the DGYF-400C helps reduce leakage, protect product integrity and achieve a professional packaging finish.

Technical Specifications

Model: DGYF-400C

Power Supply: AC 220V ±20%, 50/60Hz

Output Power: 600W–1200W

Sealing Diameter: 50–160mm

Sealing Speed: 20–30 bottles per minute

Adjustable Sealing Time: 0.1–4.9 seconds

Maximum Operating Current: 6A

Machine Dimensions: 340 × 290 × 150mm

Weight: 4kg

Please Note: Compatible aluminium foil heat induction sealing liners are required. The machine is not suitable for metal containers or metal bottle caps. Do not use with flammable or explosive products. Always ensure that the liner, container material and sealing settings are compatible before use.

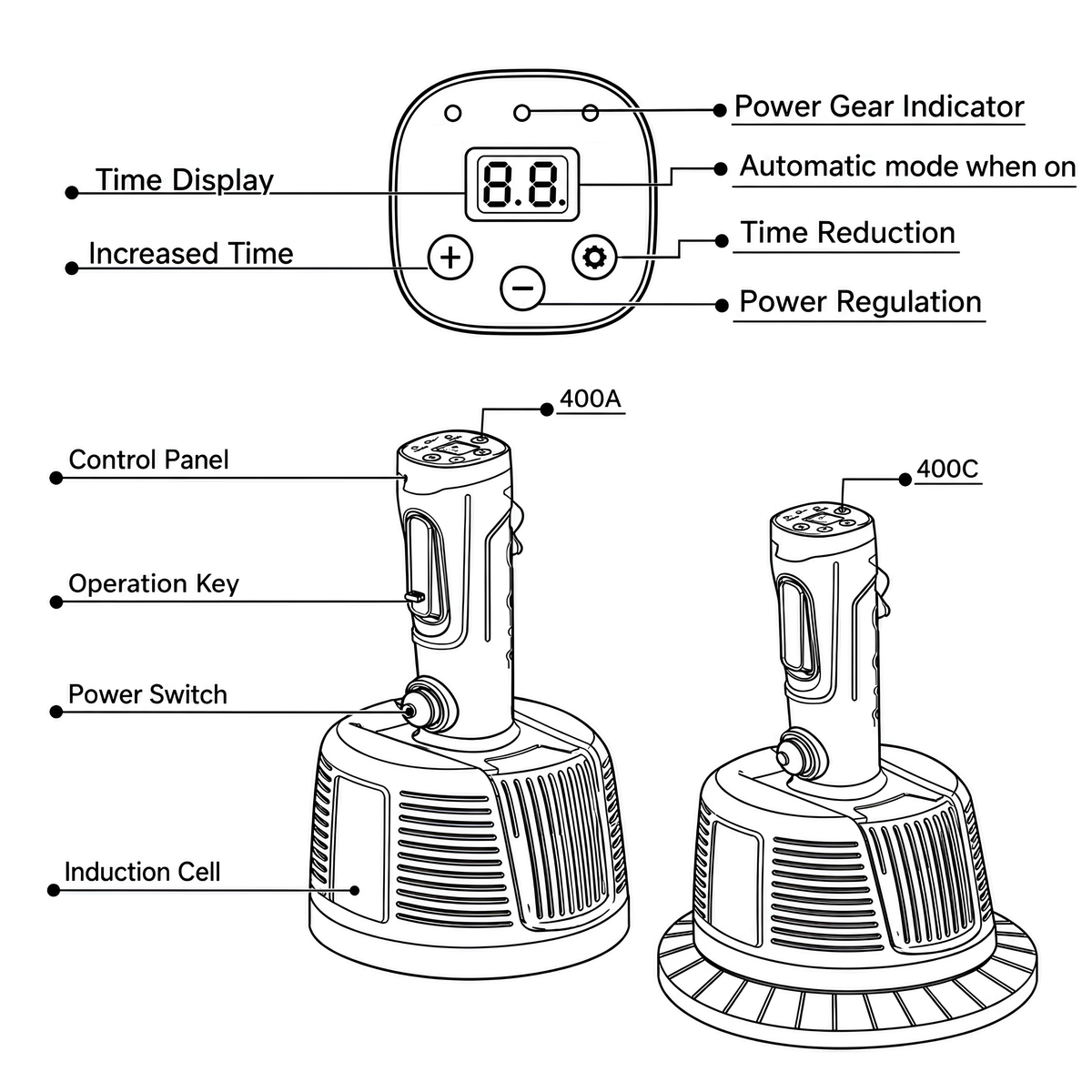

Key Features

Handheld Design: Compact and convenient for small-scale and growing production operations.

50–160mm Sealing Range: Accommodates various compatible container opening sizes.

Adjustable Sealing Time: Set sealing times between 0.1 and 4.9 seconds to suit different packaging requirements.

Digital Display: Clearly displays sealing settings for easy operation.

Automatic Memory Function: Retains sealing settings for convenient repeated use.

Efficient Sealing: Capable of sealing approximately 20–30 bottles per minute, depending on operating conditions.

Tamper-Evident Protection: Creates a secure seal that provides visible evidence of opening.

Built-In Protection: Features over-current, over-heat, over-voltage and under-voltage protection.

Versatile Applications: Suitable for compatible plastic and glass containers across various non-flammable product categories.
