Handheld Induction Sealing Machine DGYF-400A (20-80mm Range)
Couldn't load pickup availability
Pre-Order Notice
Please note this product is available for pre-order and will require a lead time of 2-3 business days before it is ready for delivery.
Description
This advanced induction sealing machine offers a highly efficient and popular method for sealing plastic and glass bottles using induction heating technology. Designed for non-contact, fast sealing, it provides an excellent seal that enhances product longevity and ensures tamper resistance, making it ideal for use in industries such as pharmaceuticals, chemicals, food and beverages, lubricants, and cosmetics.
Important: Not suitable for flammable or explosive products or environments.
Technical Specifications
Power Supply: AC 220V ±20%, 50/60 Hz
Output Power: 600W-1200W
Quiescent Current: < 0.1A
Max Operating Current: < 6A
Sealing Speed: 10-30 bottles per minute
Sealing Diameter: φ20-80mm
Weight: 0.75kg

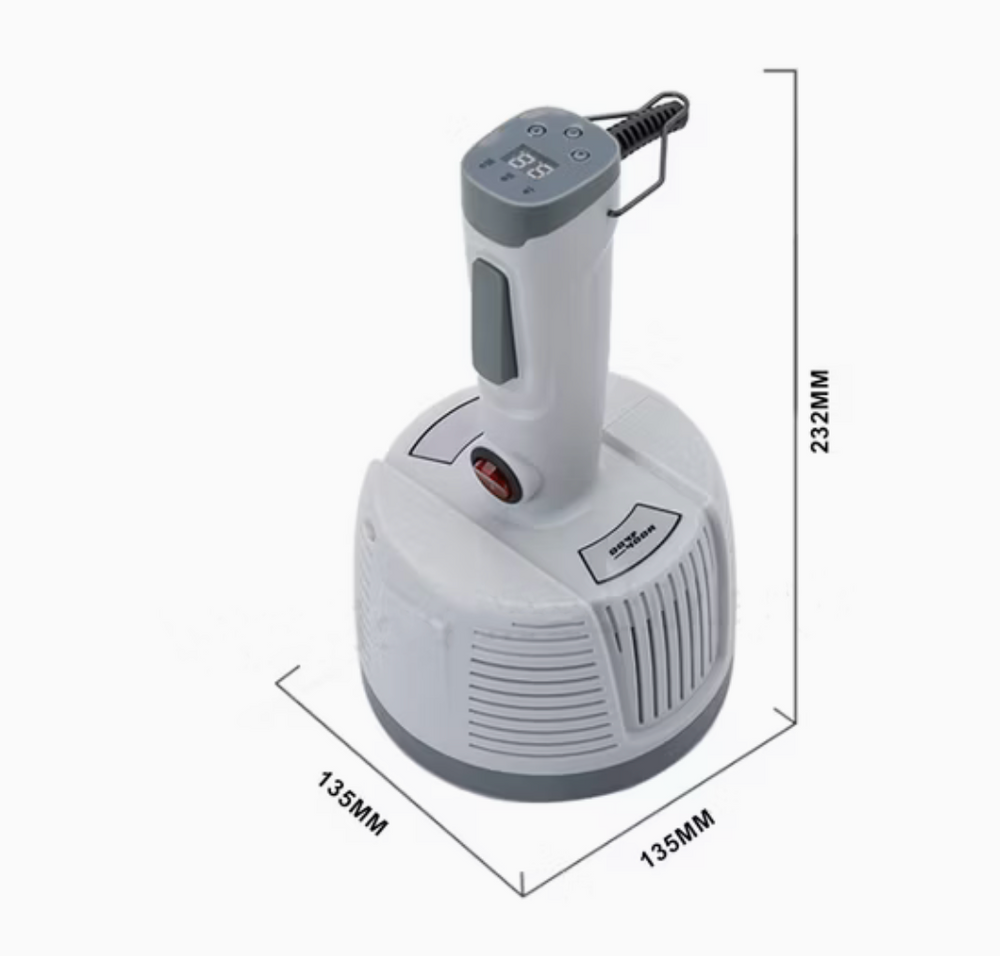

Dimensions (mm): 135 x 135 x 232
Key Features
Efficient Induction Sealing: Uses non-contact induction heating for a secure, airtight seal, ideal for prolonging product shelf life and preventing tampering.
Versatile Application: Suitable for sealing plastic and glass bottles across industries including pharmaceuticals, food and beverage, chemicals, cosmetics, and lubricants.
High Sealing Speed: Capable of sealing 10-30 bottles per minute, enhancing productivity and efficiency.
Wide Sealing Diameter Range: Accommodates bottle diameters from 20mm to 80mm, making it suitable for a variety of bottle sizes.
Adjustable Output Power: Power range from 600W to 1200W for adaptable performance based on sealing needs.
Compact and Lightweight Design: Weighs only 0.75kg with compact dimensions (135 x 135 x 232mm), easy to integrate into production setups.
Safety Note: Not designed for use with flammable or explosive products or in such environments, ensuring safety during operation.
Equipment catalog
Caution
Do Not Use with Flammable or Explosive Products: This machine is not suitable for sealing products that are flammable or explosive, nor should it be operated in such environments.
Electrical Safety: Ensure the power supply is AC 220V ±20%, 50/60 Hz, to avoid damage or malfunction. Always check the power source before operating.
Proper Handling Required: Only trained personnel should operate this machine to prevent improper use, which may compromise safety and product performance.
Overheating Prevention: Allow the machine to cool down periodically during extended operation to prevent overheating.
Keep Away from Water and Moisture: Avoid using the machine near water sources to reduce the risk of electrical shock or short-circuiting.
Regular Maintenance: Check and clean the machine routinely to maintain optimal performance and prevent malfunctions.
